Vertical FV190
Product Center
Curtain wall ventilator
Key words:
1. Product structure diagram:
The ventilator is on
Ventilator off state
Ventilator Indoor Dimensions

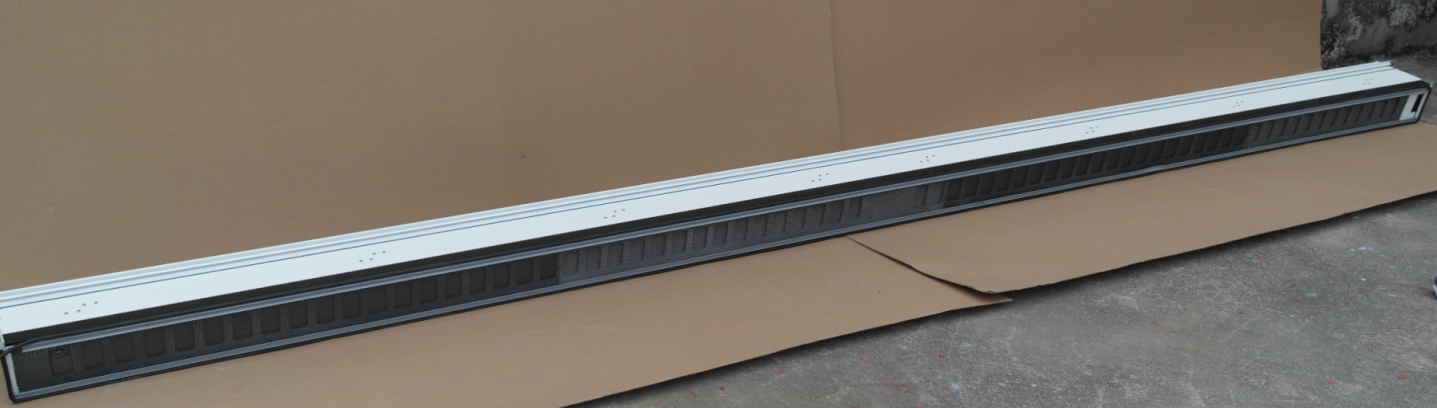

The overall structure of the ventilator
2. Product technical parameters:
Dimensions: thickness 190mm, width 200mm
Product length: determined according to the size of the hole
Product color: according to the color palette
Ventilation area: 19646mm2/m
Ventilation volume under 2 Pa differential pressure: 73m3/(mh)
Ventilation volume under 10 Pa differential pressure: 180m3/(mh)
Power input: AC220 50HZ
Motor model: DC12V
Filtration effect: can efficiently filter outdoor dust and mosquitoes
3. Product picture:

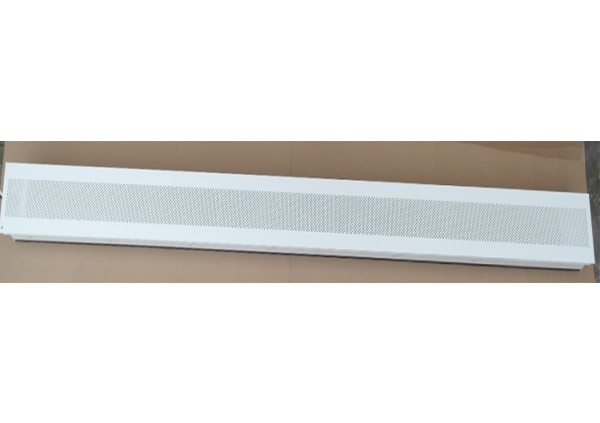

Product interior view

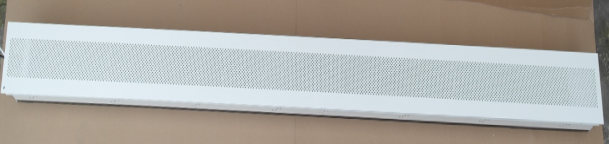

Product room exterior view
Product panel disassembly drawing

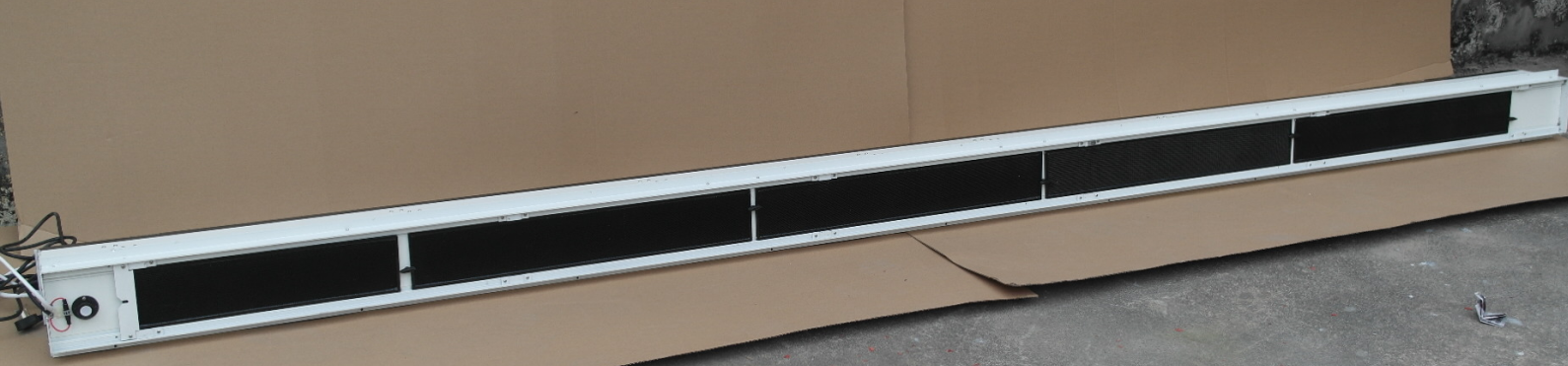

Product opening status Product logo

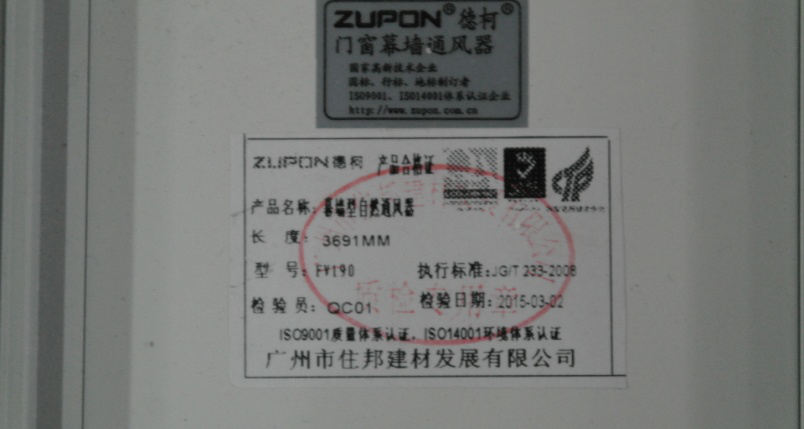

Product nameplate/certificate
Description of features:
Ø An electronically controlled natural ventilator for curtain wall, the shell is made of aluminum alloy, the product has high strength, and the surface treatment can be consistent with that of the curtain wall.
Ø The shell is connected by a cold bridge
Ø The interior panel is detachable for easy cleaning of the panel and air duct.
Ø Through the indicator light, you can understand its working status more intuitively.
Ø The product is input with AC220 50HZ power supply, and the motor adopts DC12V safe power supply.
Ø The product is easy to operate.
4. Instructions for use:
1. Turn on: Turn on the power, turn on the switch, the power indicator light is on, indicating that the ventilator has been turned on.
2. Off: Turn off the switch, the power indicator light is off, indicating that the ventilator is off.

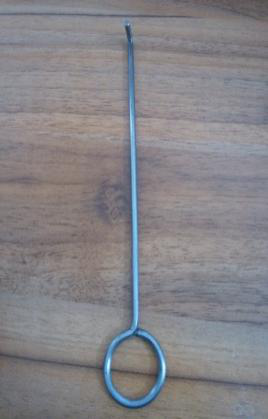

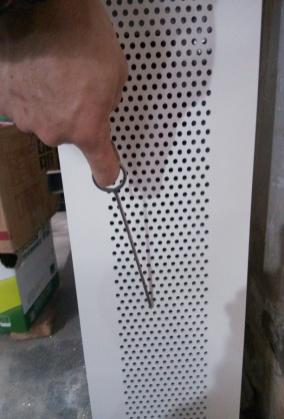

3. Cleaning and maintenance: a. Disassemble the panel: use the supporting tool to lift up the perforation, and then pull it out. As shown in the picture:
b. Remove the filter: turn the knob 90°, and pull the filter outward.

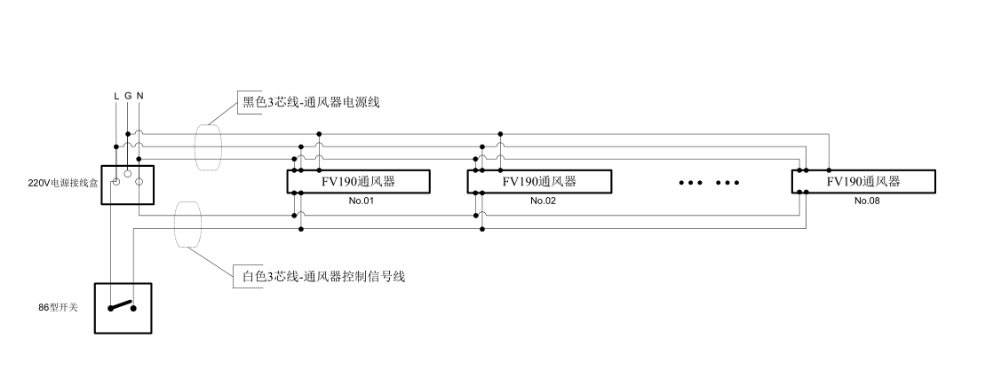

5. Installation instructions:
The ventilator is installed on the column of the curtain wall, the minimum size of the hole is 147.3mm, and the size of the product cavity is 143.3mm, which can ensure smooth insertion into the hole. The ventilator is easy to install, just remove the product panel, locate the size, lock it with screws, and seal the gap.

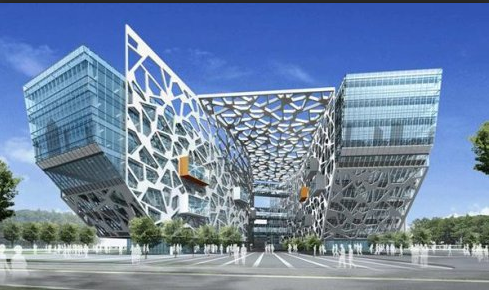

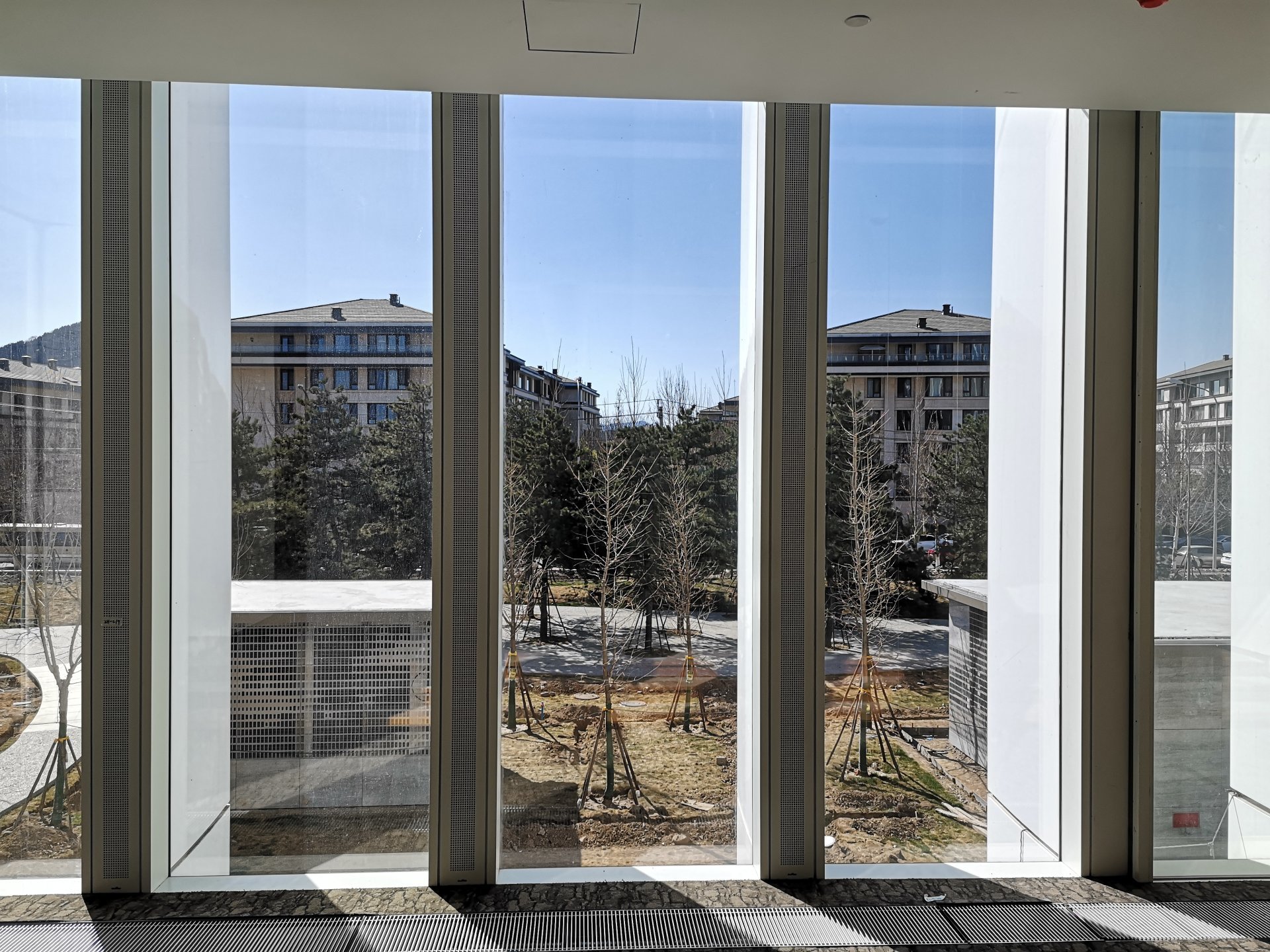

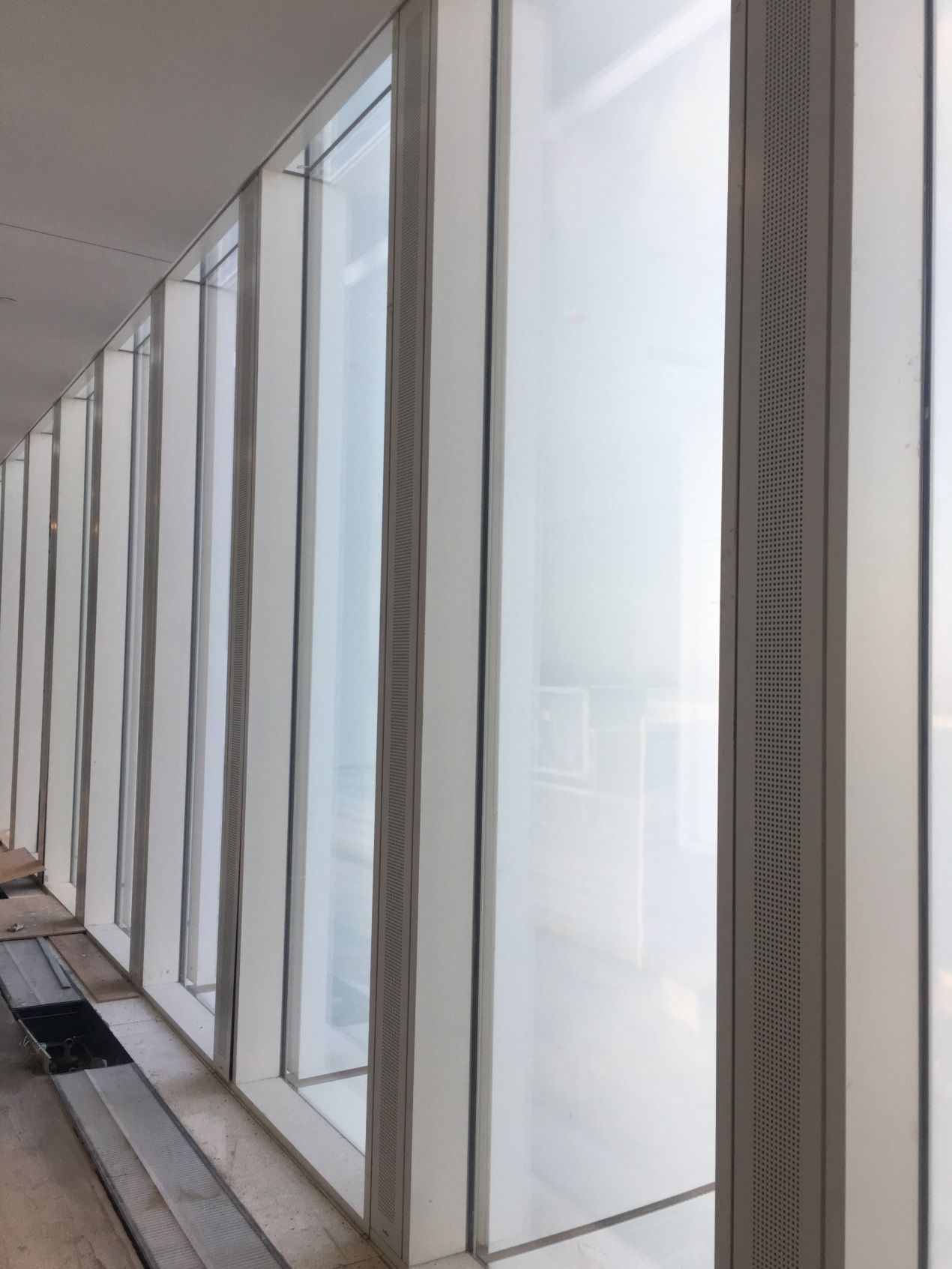

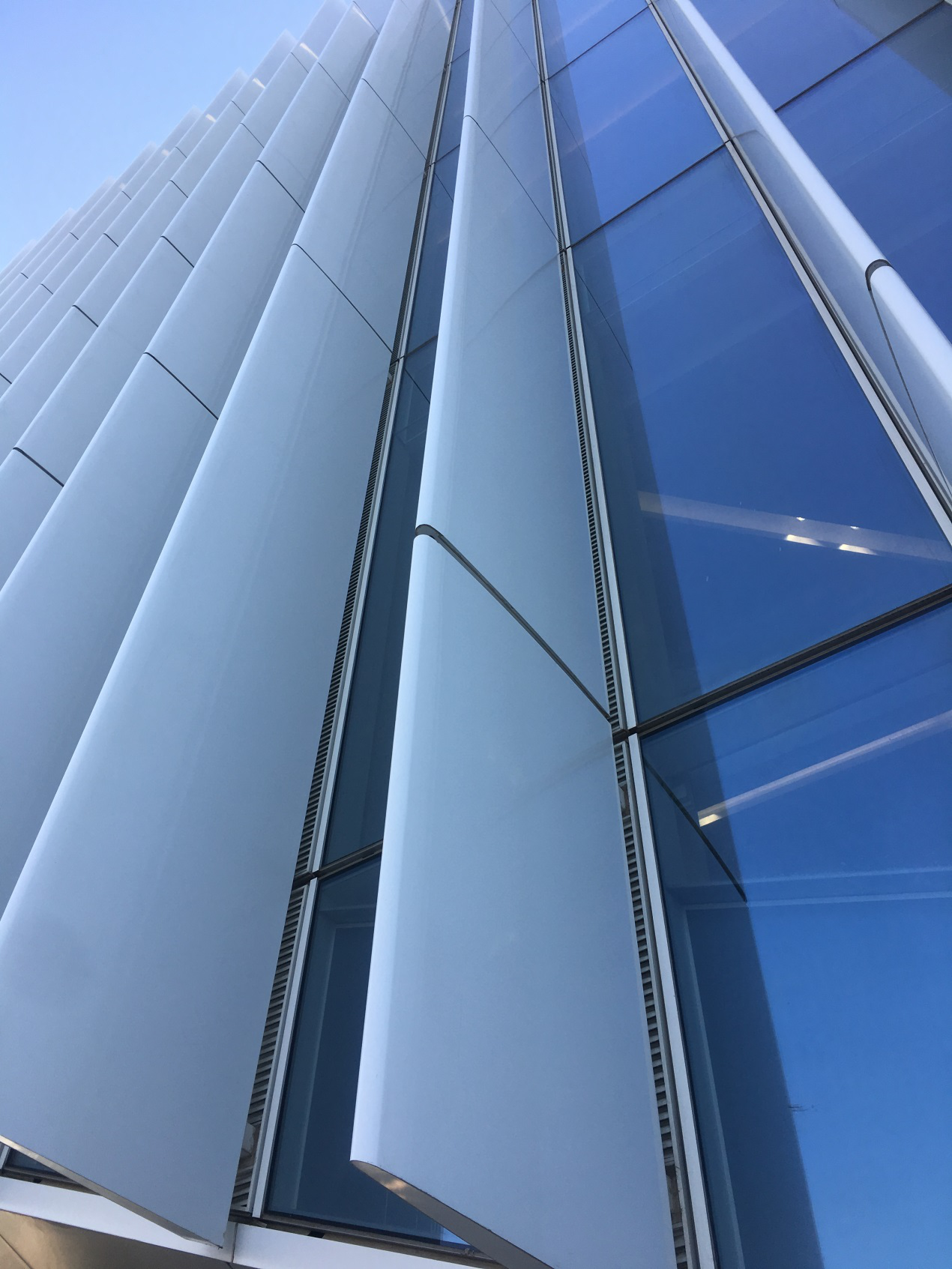

Application project:
1. Product structure diagram:
The ventilator is on
Ventilator off state
Ventilator Indoor Dimensions
The overall structure of the ventilator
2. Product technical parameters:
Dimensions: thickness 190mm, width 200mm
Product length: determined according to the size of the hole
Product color: according to the color palette
Ventilation area: 19646mm2/m
Ventilation volume under 2 Pa differential pressure: 73m3/(mh)
Ventilation volume under 10 Pa differential pressure: 180m3/(mh)
Power input: AC220 50HZ
Motor model: DC12V
Filtration effect: can efficiently filter outdoor dust and mosquitoes
3. Product picture:
Product interior view
Product room exterior view
Product panel disassembly drawing
Product opening status Product logo
Product nameplate/certificate
Description of features:
Ø An electronically controlled natural ventilator for curtain wall, the shell is made of aluminum alloy, the product has high strength, and the surface treatment can be consistent with that of the curtain wall.
Ø The shell is connected by a cold bridge
Ø The interior panel is detachable for easy cleaning of the panel and air duct.
Ø Through the indicator light, you can understand its working status more intuitively.
Ø The product is input with AC220 50HZ power supply, and the motor adopts DC12V safe power supply.
Ø The product is easy to operate.
4. Instructions for use:
1. Turn on: Turn on the power, turn on the switch, the power indicator light is on, indicating that the ventilator has been turned on.
2. Off: Turn off the switch, the power indicator light is off, indicating that the ventilator is off.
3. Cleaning and maintenance: a. Disassemble the panel: use the supporting tool to lift up the perforation, and then pull it out. As shown in the picture:
b. Remove the filter: turn the knob 90°, and pull the filter outward.
5. Installation instructions:
The ventilator is installed on the column of the curtain wall, the minimum size of the hole is 147.3mm, and the size of the product cavity is 143.3mm, which can ensure smooth insertion into the hole. The ventilator is easy to install, just remove the product panel, locate the size, lock it with screws, and seal the gap.
Application project:
