Door, Window And Curtain Wall Ventilation Expert

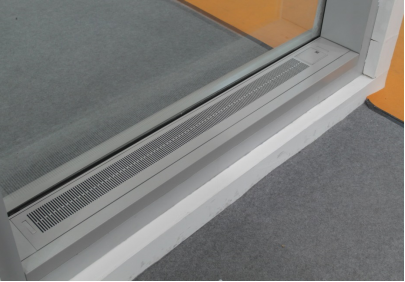

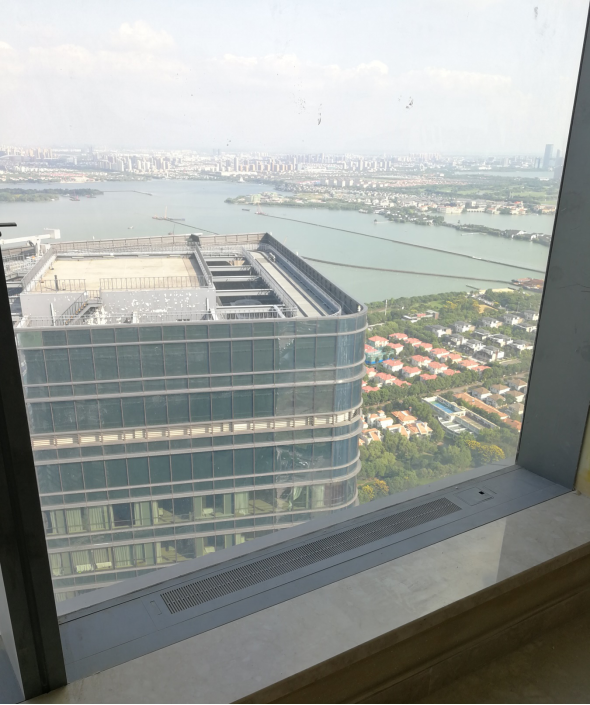

Flush FV132

Brief product description: 1. aluminum alloy shell, product strength, to meet the curtain wall installation ventilation requirements 2. Product surface treatment process and color can be consistent with the curtain wall beam 3. Ventilator and curtain wall beam interface using sealant tape compression seal 4. Ventilator installation is simple, open the panel, screw fixed to the beam 5. Ventilator dampers are flush type, good air tightness in closed state 6. The ventilator panel can be rotated to open 90 degrees, which is convenient for cleaning the ventilator cavity 7. The panel is equipped with a filter 8. Product accessories are made of zinc alloy and aluminum alloy, not rusting
Category:

Product Center

Curtain wall ventilator

Key words:

fv132 ventilator product ventilation panel pressure
Product Details

1.  Ventilator node

Brief product description:

1. Aluminum alloy casing, high product strength, meeting the ventilation requirements of curtain wall installation

2. The product surface treatment process and color can be consistent with the curtain wall beams

3. The interface between the ventilator and the curtain wall beam is compressed and sealed with a sealing tape

4. The ventilator is easy to install, open the panel, and screw it into the beam

5. The damper of the ventilator adopts a translational type, and the closed state has good airtightness

6. The ventilator panel can be rotated and opened 90 degrees, which is convenient for cleaning the ventilator cavity

7. There is a filter in the panel

8. The accessories of the product are made of zinc alloy and aluminum alloy, which will not rust

2.  Technical parameters:

Product number:

FV132b

5pa differential pressure ventilation volume:

70m3/(m.h)

Standard sizes:

43*137.5mm

10pa differential pressure ventilation volume:

100m3/(m.h)

Ventilation area:

22000mm2/m

Watertight performance:

900pa

Wind pressure performance:

4500pa
