Before using the ventilator for the first time, you should carefully read the instructions and illustrations.

Non-professional technicians are not allowed to disassemble and install natural ventilators.



Do not use chemical solvents to clean the equipment housing!

Thank you for purchasing the ZUPON brand natural ventilator. In order to ensure a better experience of the ventilation product, please read this manual carefully before you use it, and please save it for future reference.



Appearance diagram

操作說明

Part name: 1. Frame material 2. Panel 3. Air door fixing plate 4. Air door sliding plate 5. Mounting screw 6. Outer shutter 7. End configuration 8. Switch knob



Features

ZUPON curtain wall natural ventilators can send outdoor fresh air into the room, and can effectively prevent dust and noise from entering the room during ventilation, increase the indoor oxygen content, and keep the indoor environment clean and fresh.



1. Innovative natural ventilation system, restart the most primitive natural ventilation method.

2. Increase the oxygen content of indoor air and improve the quality of life

3. The product does not consume energy and provides you with fresh and clean air for 24 hours

4. The operation of the product is simple, the ventilators can be opened and closed by rotating the knob

5. Safe when ventilated, anti-theft, soundproof



Technical Parameters

performance:

parameter:

Remarks:

Section size:

high:33mm,width:120mm



length:

Window opening size



Ventilation area:

21000mm2/m



5paDifferential pressure ventilation:

90m3/(m.h)



Watertight performance:

4level



Airtight performance:

4level



Wind resistance performance:

6level



Sound insulation performance:

35decibel









Instructions

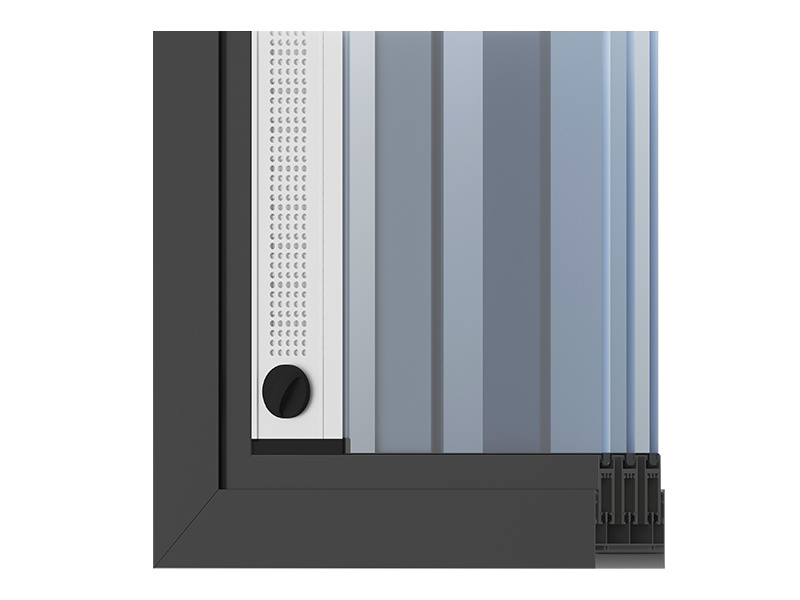

Appearance Diagram

1、 The ventilator in the position on the left is closed

2、 Anticlockwise rotation60Degree knob to open the ventilator damper

3、 clockwise rotation60Degree can close the ventilator damper
